Manufacturers Produce Building Materials Floors and Trenches I-Shaped Steel Grating Metal Steel and Galvanized Steel Bar Gratin

Place of Origin:China

Brand Name:GNEE

Certification:SGS

Price:Negotiable

Payment Terms:Negotiable

Supply Ability:100 ton/week

Product Details

Highlight:

serrated steel grating flooring

galvanized steel bar grating

I-shaped steel trench grating

Product Description

Manufacturers Produce Building Materials Floors and Trenches I-Shaped Steel Grating Metal Steel and Galvanized Steel Bar Gratin

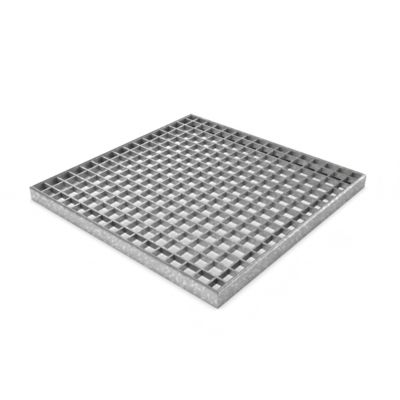

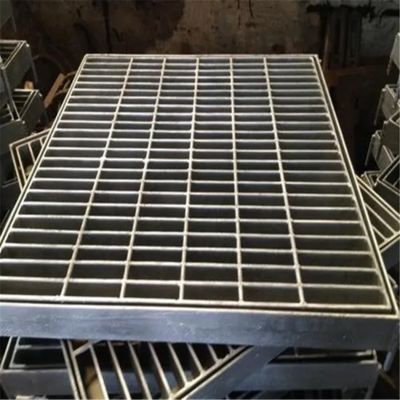

Galvanized Welded Metal Steel Grating, also known as bar grating or metal grating, is an open grid assembly of metal bars, in which the bearing bars, running in one direction, are spaced by rigid attachment to cross bars running perpendicular to them or by bent connecting bars extending between them, which is designed to hold heavy loads with minimal weight. It is widely used as floors, mezzanines, stair treads, fencing, trench covers and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.

I-Shaped Steel Grating Metal Steel and Galvanized Steel Bar Grating

Galvanizing standard	Steel, Low carbon steel, stainless steel & Q235, A36, SS304, SS316L, S235JR
Surface treatment	Black, hot dipped galvanized, paint
Bearing bar width*thickness	25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5,.....75x10mm US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc.
Bearing bar pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm.

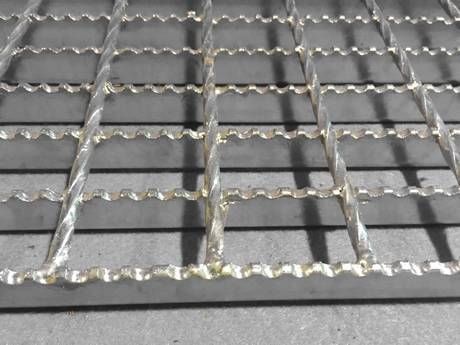

Bearing bar shape	Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating.
Cross bar shape	Round, twisted, bar shape
Cross bar pitch	38, 50, 76, 100, 101.6mm

Product Summary

Manufacturers Produce Building Materials Floors and Trenches I-Shaped Steel Grating Metal Steel and Galvanized Steel Bar Gratin Galvanized Welded Metal Steel Grating, also known as bar grating or metal grating, is an open grid assembly of metal bars, in which the bearing bars, running in one ...
