Standard Welded Steel Grating Galvanized Steel Grating Walkway Platform

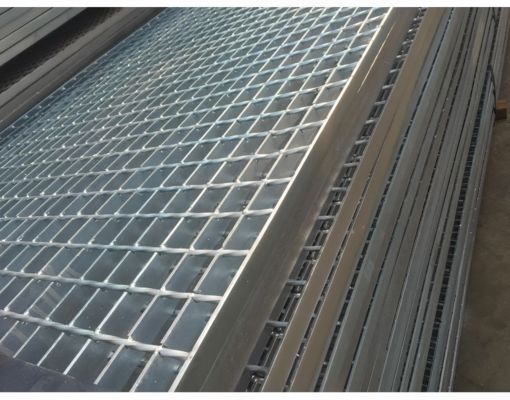

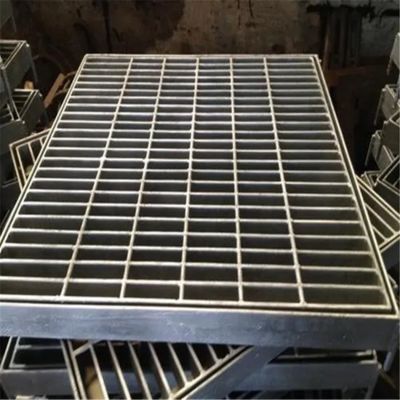

Large Image : Standard Welded Steel Grating Galvanized Steel Grating Walkway Platform

Product Details:

Place of Origin:	China
Brand Name:	GNEE
Certification:	SGS

Payment & Shipping Terms:

Price:	Negotiable
Packaging Details:	Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Payment Terms:	Negotiable
Supply Ability:	100 ton/week

Contact Now

Standard Welded Steel Grating Galvanized Steel Grating Walkway Platform

Description

Highlight:

galvanized steel grating walkway

welded steel grating platform

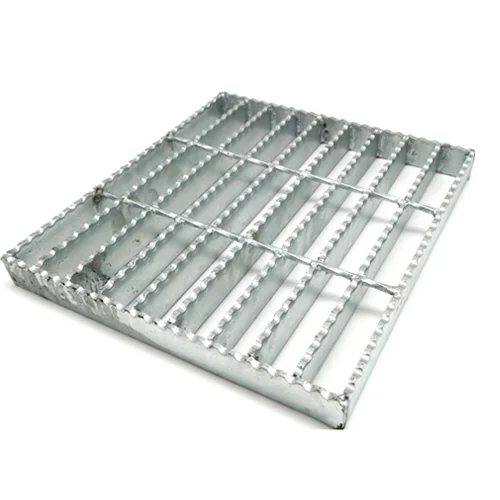

serrated steel grating flooring

Standard Welded Steel Grating Galvanized Steel Grating Walkway Platform

Galvanized Welded Metal Steel Grating, also known as bar grating or metal grating, is an open grid assembly of metal bars, in which the bearing bars, running in one direction, are spaced by rigid attachment to cross bars running perpendicular to them or by bent connecting bars extending between them. It is designed to hold heavy loads with minimal weight and is widely used as floors, mezzanines, stair treads, fencing, trench covers and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas.

Item	Description
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar

Tag:

Contact Person: Mrs. Zhang

Tel: +86 15824687445

Fax: 86-372-5055135

Other Products

30 X 5 Hot Dipped Serrated Steel Grating With Twist Bar Galvanized Steel

Grating Standard: BS 4592-1987, AS 1657-1985, YB/T4001.1-2007

Welding Way: Electrical forged welding, hand welding

HDG standard: BS729, ASTM A123/A123M-97a,ASTM A36/A36M-96

Surface treatment: Hot Dipped Galvanized 450g/sq

Serrated Steel Grid Mesh Flooring , Sliding Resistance Steel Platform Grating

Product name: Serrated Type Galvanized Steel Bar Sliding Resistance Grating Platform

Bearing bar type: Serrated

Grating thickness: 20mm,25mm,30mm,40mm ,60mm etc

Bearing bar thickness: 2,3,5,10mm,etc

Galvanized Serrated Steel Grating For Floor Plate Q235low Cardon Material

Welding Way: Electrical forged welding, hand welding

Cross Bar Pitch: 38mm,50mm,100mm etc

Bearing bar size: 25*3, 30*3,50X5mm

Bearing bar spacing: 30mm,35mm,40mm or customized

40 X 5 Serrated Bar Grating , Metal Building Hot Dipped Galvanised Steel Grate

Bearing bar size: 25x5,32x5,32x3,35x5,40x3,40x5,55x5 and etc

Surface Finishing: Hot dipped galvanized,Painting

Grating Size: 3'x20', 3'x24', 3'x30', 1000x1000MM

Bearing bar spacing: 30mm,35mm,40mm or customized

Galvanized Serrated Steel Grating Anti Slip Welded Steel Silver / Black Color

Color: Silver,Black

Surface treatment: Galvanized,Painting

Cross Bar Pitch: 38mm,50mm,100mm etc

Bearing bar spacing: 30mm,40mm ,60mm etc
