Hot DIP Galvanized Steel Grating /25X5 Steel Grating/Serrated Steel Grating/Catwalk Platform Steel Grating /Steel Grating Clips/Heavy Duty Steel Grating
Place of Origin:China
Brand Name:GNEE
Certification:SGS
Price:Negotiable
Payment Terms:Negotiable
Tags:
Product Details
Highlight:
hot dip galvanized steel grating
,serrated steel grating catwalk
,heavy duty steel grating clips
Product Description
Hot DIP Galvanized Steel Grating /25X5 Steel Grating/Serrated Steel Grating/Catwalk Platform Steel Grating /Steel Grating Clips/Heavy Duty Steel Grating

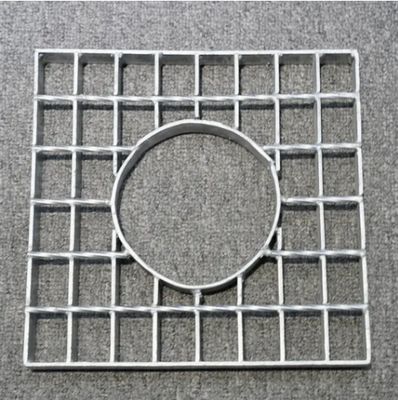

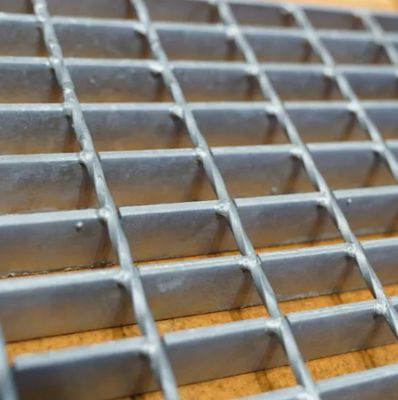

The grating features a square grid pattern in the middle, composed of flat bearing bars and cross round bars. Primarily used as gutter covers, steel structure platform walkways, and steps of steel ladders.
Product Specifications
Material: Generally made of carbon steel with hot-dip galvanized surface to prevent oxidation. Also available in stainless steel or aluminum.
Welding Methods: Machine forge welding or handmade manual welding

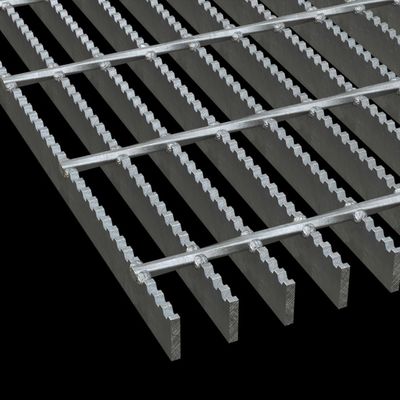

Surface Types: Flat type, tooth type, and "I" type
Applications: Trench covers, platform walkways, stair treads
Technical Specifications
| Type | Width mm | Thick mm | KG/m | Clear Span mm | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G505/30/50 | 50 | 5 | 80.9 | U | 2361 | 590 | 262 | 147 | 94 | 65 | 48 |
| D | 0.14 | 0.55 | 1.24 | 2.2 | 3.45 | 4.97 | 6.82 |
Configuration Options
- Grating Type: Plain steel grating
- Bearing bar space: 30mm, 35mm, 40mm, 45mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm
- Bearing bar thickness: 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm
- Cross bar size: ø5mm, ø6mm, ø7mm, ø8mm, ø12mm, ø10mm
- Cross bar space: ø40mm, ø50mm, ø60mm, ø80mm, ø100mm
- Welding method: Machine forge welding or manual hand-made welding
- Usage: Flooring walkway, drain cover, stair treads grating
- Surface treatment: Black bare metal or hot dipped galvanized or powder coating
Product Summary
Hot DIP Galvanized Steel Grating /25X5 Steel Grating/Serrated Steel Grating/Catwalk Platform Steel Grating /Steel Grating Clips/Heavy Duty Steel Grating The grating features a square grid pattern in the middle, composed of flat bearing bars and cross round bars. Primarily used as gutter covers, ...
