Welded Bar Grating Metal Serrated Drainage Toothed HDG Steel Serrated Floor Gratings

Place of Origin:China

Brand Name:GNEE

Certification:SGS

Price:Negotiable

Payment Terms:Negotiable

Supply Ability:100 ton/week

Product Details

Highlight:

welded bar grating serrated steel

serrated drainage grating HDG steel

toothed floor gratings with warranty

Product Description

Welded Bar Grating Metal Serrated Drainage Toothed HDG Steel Serrated Floor Gratings

Galvanized Welded Metal Steel Grating, also known as bar grating or metal grating, is an open grid assembly of metal bars, in which the bearing bars, running in one direction, are spaced by rigid attachment to cross bars running perpendicular to them or by bent connecting bars extending between them, which is designed to hold heavy loads with minimal weight. It is widely used as floors, mezzanines, stair treads, fencing, trench covers and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.

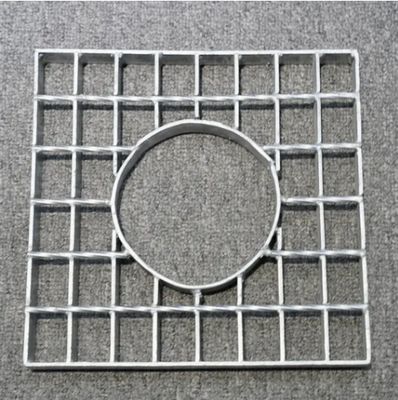

Galvanized welded steel grating installation example

Material Specifications

Material standard	Bearing bar	Cross bar	Bearing bar pitch	Cross bar pitch
Q235	25mm*3mm	5mm	20mm	50mm
	25mm*5mm
	30mm*3mm
Q345	30mm*5mm	27mm	6mm	30mm
	32mm*3mm
	32mm*5mm
ASTM A36	35mm*5mm	31mm	100mm
	40mm*3mm
	40mm*5mm
	50mm*5mm
ASTM A1011	60mm*5mm	8mm	32mm
	60mm*8mm
	34mm
	75mm*5mm
	75mm*8mm
ss400	40mm

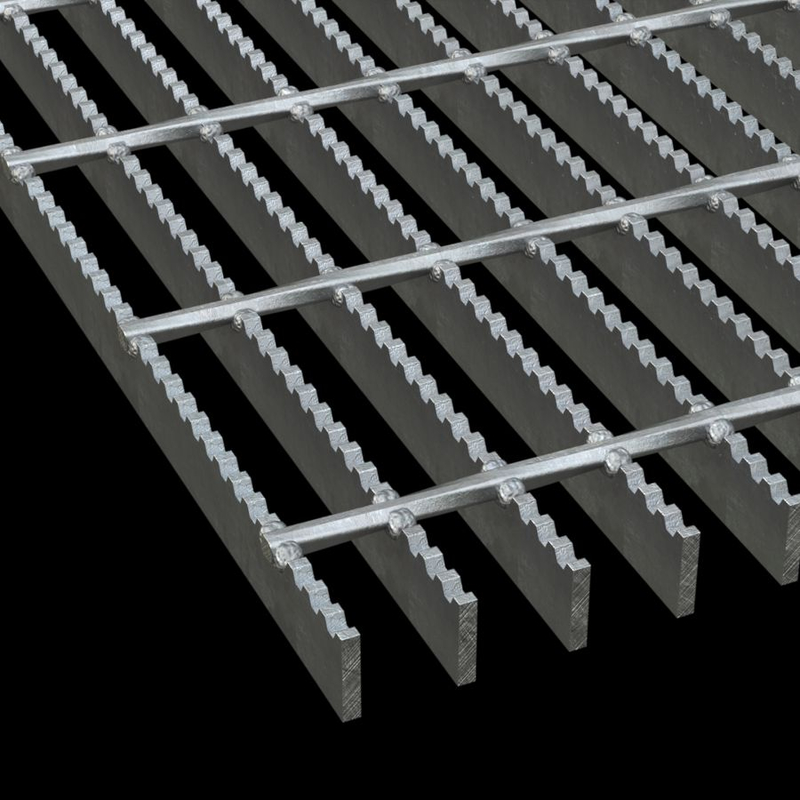

Close-up view of serrated steel grating surface

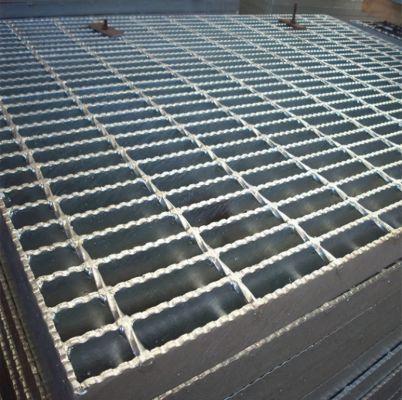

Industrial application of steel grating in heavy-duty environment

Product Summary

Welded Bar Grating Metal Serrated Drainage Toothed HDG Steel Serrated Floor Gratings Galvanized Welded Metal Steel Grating, also known as bar grating or metal grating, is an open grid assembly of metal bars, in which the bearing bars, running in one direction, are spaced by rigid attachment to cross ...
