Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Place of Origin:China

Brand Name:GNEE

Certification:SGS

Price:Negotiable

Payment Terms:Negotiable

Product Details

Highlight:

rust-proof galvanized steel grating

serrated steel grating platform

galvanized steel grating with warranty

Product Description

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating

Serrated steel grating is ideal for wet environments or areas requiring enhanced non-slip properties. The serration process involves carving patterns into the bars, available in both control and filler bars depending on directional requirements.

Serration Patterns

Small Serration: Most common for industrial walkways, staircases, and heavy-duty ramp gratings.
Large Serration: Easy to clean, primarily used in industrial kitchens, canteens, and areas with high hygiene and non-slip requirements.

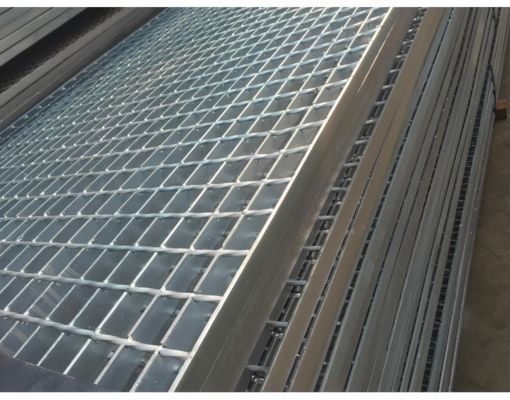

Galvanized steel grating platform with serrated surface

Serrated steel grating is the most popular type due to its strength, cost-efficiency, and easy installation. Features include high strength-to-weight ratio, non-slip characteristics, rolled-on serrations for safety, and no sharp edges.

Optional serrated bearing bars provide enhanced skid resistance, recommended for areas with liquid accumulation or inclined installations. Note: Serrated grating requires bearing bars 1/4" deeper to maintain equivalent strength to non-serrated gratings.

Technical Specifications

Item	Description
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar

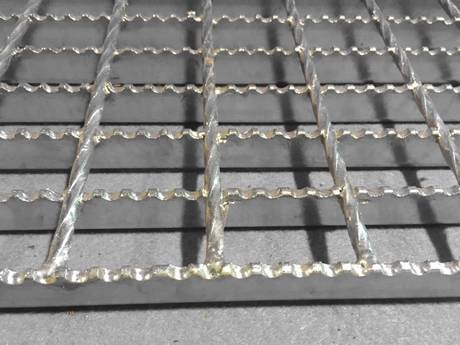

Close-up view of serrated steel grating surface

Industrial application of galvanized steel grating platform

Product Summary

Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating Serrated steel grating is ideal for wet environments or areas requiring enhanced non-slip properties. The serration process involves carving patterns into the bars, available in both control and filler bars depending on directional ...
