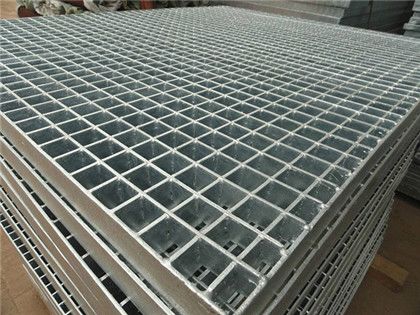

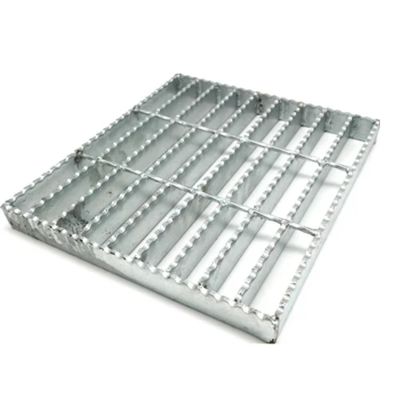

Anti-Slip Serrated Steel Grating for Walkway and Stair Treads

Place of Origin:China

Brand Name:GNEE

Certification:SGS

Price:Negotiable

Payment Terms:Negotiable

Product Details

Highlight:

anti-slip serrated steel grating

steel grating for walkway treads

serrated steel grating for stairs

Product Description

Anti-Slip Serrated Steel Grating for Walkway and Stair Treads

This anti-slip serrated steel grating is engineered to enhance safety on walkways, stair treads, and industrial platforms. Constructed from high-strength steel, the serrated surface prevents slipping even in wet or oily conditions. The grating is hot-dip galvanized or painted for long-lasting corrosion protection. It is widely used in factories, power plants, oil platforms, and construction sites where worker safety is critical. Available in custom sizes and designs, it can be tailored to fit any project requirement. Quick to install and easy to maintain, this steel grating ensures efficient material flow, safe walking surfaces, and reliable performance under heavy loads.

Anti-Slip Serrated Steel Grating installed on industrial walkway

Technical Specifications

Process Type	Technical Features	Applicable Scenarios	Customer Value
Press Welding Process	The load-bearing flat steel and crossbars are joined by high-temperature, high-pressure resistance welding. The weld penetration depth is ≥3 mm, ensuring there are no cold welds or weld separation and providing high overall rigidity.	Long-Term Load-Bearing Scenarios: (such as equipment platforms and walkways) are preferred for areas subject to heavy loads and frequent use.	Reduce long-term maintenance costs and prevent safety hazards caused by solder joint failure.
Press Locking	The crossbar is mechanically pressed into the flat steel channel without welding, enabling quick installation and easy modification.	Temporary structures requiring frequent disassembly (e.g., maintenance platforms)	Reduce installation time, enable flexible retrofitting, and lower construction costs.

Product Specifications

Pitch of Bearing bar	Cross-bar Pitch	20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50

Pitch of Bearing bar	Cross-bar Pitch	32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

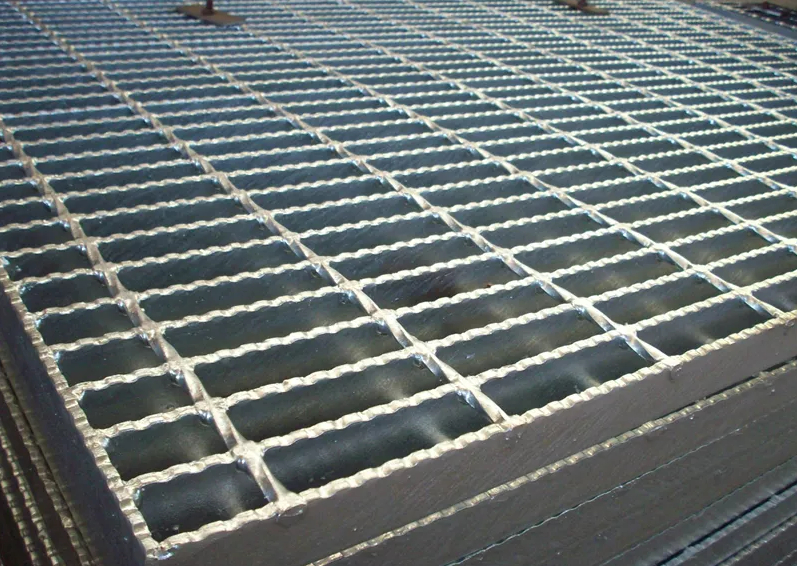

Close-up view of Anti-Slip Serrated Steel Grating surface texture

Anti-Slip Serrated Steel Grating installed on industrial stair treads

Product Summary

Anti-Slip Serrated Steel Grating for Walkway and Stair Treads This anti-slip serrated steel grating is engineered to enhance safety on walkways, stair treads, and industrial platforms. Constructed from high-strength steel, the serrated surface prevents slipping even in wet or oily conditions. The ...
