Hot DIP Galvanized Q235B Steel Bar Grating Serrated Heavy Duty Metal Grating Customizable for Wet and Slippery Situations

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Q235B Steel Bar Grating

Serrated Metal Grating

Customizable Steel Grating

Product Description

Hot DIP Galvanized Steel Driveway Grating

Heavy Duty Metal Bearing Bar Serrated Steel Mesh

Galvanized steel grating is an ideal solution for wet, slippery environments requiring superior corrosion resistance. Our mild steel gratings undergo a thorough hot-dip galvanizing process in a specialized bath featuring a 7-tank surface cleaning system, using 99.95% pure zinc for maximum protection.

Compliant with international standards including IS-3202, IS-4759, IS-2629, IS-2633, IS-6745, and ASTM-A-123, our hot-dip galvanized steel grating offers exceptional strength, durability, and anti-corrosion properties for industrial applications.

Manufacturing Process

Our production begins with carefully selected high-quality carbon steel bars that meet strict chemical composition and mechanical property standards. These bars are precision-cut to required lengths before undergoing our comprehensive galvanizing process.

Product Specifications

Bearing Bar	25mmx3mm	30mmx3mm	35mmx5mm	40mmx5mm	50mmx6mm	Custom-made
Bearing Bar Pitch	30mm	35mm	38mm	40mm	50mm	Custom-made
Cross Bar Pitch	33mm	54mm	64mm	100mm	150mm	Custom-made
Width	914mm	1000mm	2000mm	Custom-made
Length	1000mm	2000mm	3000mm	5800mm	6000mm	Custom-made

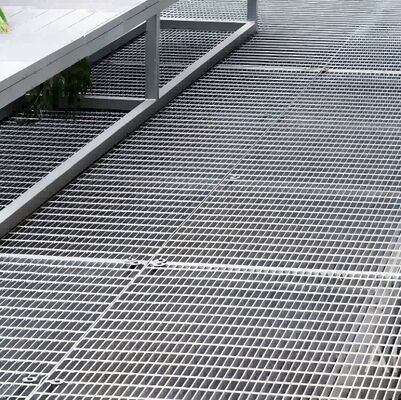

Hot-dip galvanized steel grating product showcase

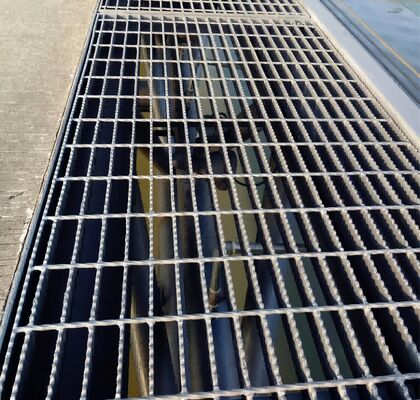

Close-up view of galvanized steel grating surface texture

Product Summary

Hot DIP Galvanized Steel Driveway Grating Heavy Duty Metal Bearing Bar Serrated Steel Mesh Galvanized steel grating is an ideal solution for wet, slippery environments requiring superior corrosion resistance. Our mild steel gratings undergo a thorough hot-dip galvanizing process in a specialized ...
