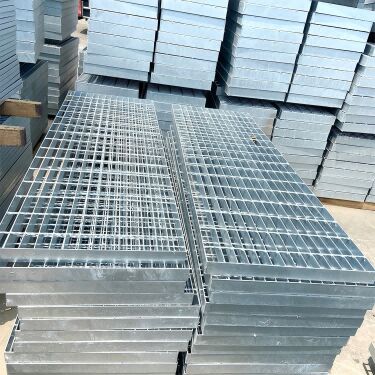

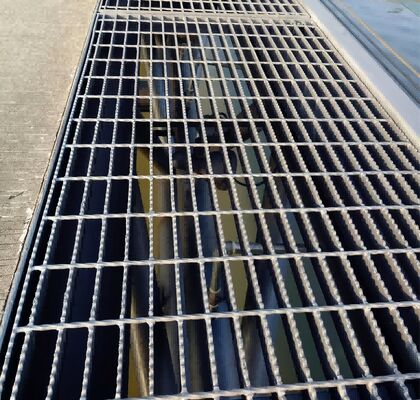

Hot DIP Galvanized Plain Steel Bar Grating with Mild Steel Cross Bar for Floor

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Plain Steel Bar Grating

Mild Steel Cross Bar Grating

Hot DIP Galvanized Floor Grating

Product Description

Hot DIP Galvanized Finish Plain Steel Bar Grating for Floor

Product Specifications

Bearing Bar (Load Bar) Specifications (mm): Plain/serrated type: 20x3 to 100x10; I-section type: 25x5x3, 32x5x3, 38x5x3, 40x5x3, 50x5x3, 50x7x4, 55x7x4, 60x7x4, 65x7x4, 70x7x4, 75x7x4
Bearing Bar Pitch (center to center): 12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100mm (custom available)
Cross Bar Pitch (center to center): 38.1, 40, 50, 60, 76, 80, 90, 100, 101.6, 102, 135mm
Material: Mild Steel (Low Carbon Steel) or Stainless Steel
Surface Treatment: Untreated, Painting or Hot DIP Galvanizing
Standards Compliance: China (YB/T4001-1998), USA (ANSI/NAAMM MBG531-88), UK (BS4592-1987), Australia (AS1657-1985), Japan (JJS)

Detailed Specifications

No.	Item	Detailed Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc. US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8''
2	Bearing Bar Pitch	12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2
3	Twisted Cross Bar Pitch	38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4''
4	Steel Grade	ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel
5	Surface Treatment	Black, self color, hot dip galvanized, painted, spray coating
6	Grating Style	Plain/Smooth, Serrated/teeth, I bar, serrated I bar
7	Grating Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

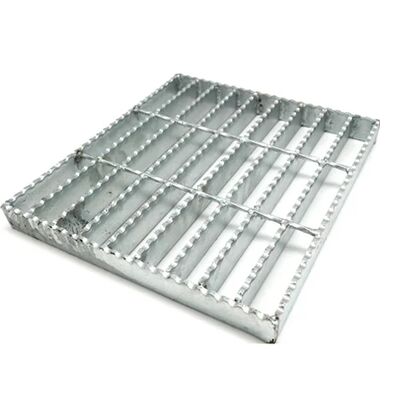

Hot DIP Galvanized Steel Bar Grating product image

Product Summary

Hot DIP Galvanized Finish Plain Steel Bar Grating for Floor Product Specifications Bearing Bar (Load Bar) Specifications (mm): Plain/serrated type: 20x3 to 100x10; I-section type: 25x5x3, 32x5x3, 38x5x3, 40x5x3, 50x5x3, 50x7x4, 55x7x4, 60x7x4, 65x7x4, 70x7x4, 75x7x4 Bearing Bar Pitch (center to ...
