Hot DIP Galvanized Plain Style Steel Bar Grating for Floor with Customizable Sizes

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Hot DIP Galvanized Steel Bar Grating

Plain Style Metal Grating

Customizable Sizes Floor Grating

Product Description

Hot DIP Galvanized Plain Steel Bar Grating for Floor

Hot DIP galvanized steel grating is available in three main styles: Plain Style Steel Grating, Serrated Style Steel Grating, and I-Bar Type Steel Grating. These durable grating solutions are widely used in steel structure platforms, stair treads, sidewalks, drainage systems, and well covers. We offer both standard configurations and custom designs tailored to specific project requirements.

Product Specifications

Bearing Bar Specifications

Plain & Serrated Types: 20x3mm to 100x10mm
I-Section Type: 25x5x3, 32x5x3, 38x5x3, 40x5x3, 50x5x3, 50x7x4, 55x7x4, 60x7x4, 65x7x4, 70x7x4, 75x7x4mm
US Standard: 1" x 3/16", 1-1/4" x 3/16", 1-1/2" x 3/16", 1" x 1/4", 1-1/4" x 1/4", 1-1/2" x 1/4" (19-w-4) and more

Bearing Bar Pitch (Center to Center)

12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100mm
Recommended pitches: 30, 40, 60mm
Custom pitches available per client requirements
US Standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2

Cross Bar Pitch (Center to Center)

38.1, 40, 50, 60, 76, 80, 90, 100, 101.6, 102, 135mm

Material Options

Mild Steel (Low Carbon Steel) or Stainless Steel

Surface Treatments

Untreated, Painting, or Hot DIP Galvanizing

International Standards Compliance

China: YB/T4001-1998, YB/T 4001.1-2007
USA: ANSI/NAAMM (MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
Japan: JIS

No.	Item	Detailed Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10-100x10mm; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
2	Bearing Bar Pitch	12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm; US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2
3	Twisted Cross Bar Pitch	38.1, 40, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4"
4	Steel Grade	ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel
5	Surface Treatment	Black, self color, hot dip galvanized, painted, spray coating
6	Grating Style	Plain/Smooth, Serrated/Teeth, I bar, Serrated I bar
7	Grating Standard	China: YB/T 4001.1-2007; USA: ANSI/NAAMM(MBG531-88); UK: BS4592-1987; Australia: AS1657-1985; Japan: JIS

Product Images

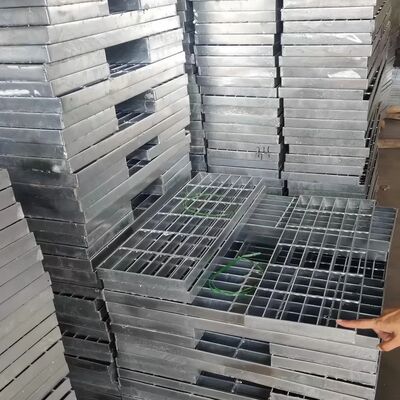

Hot DIP Galvanized Steel Grating installation example showing industrial floor application

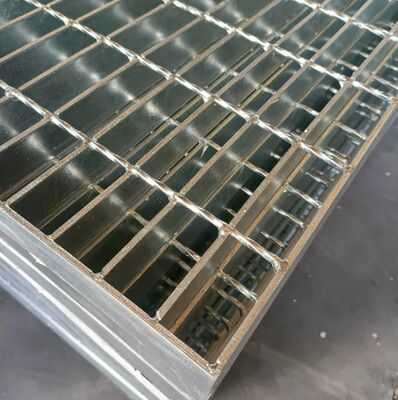

Close-up view of Hot DIP Galvanized Plain Steel Bar Grating surface and structure

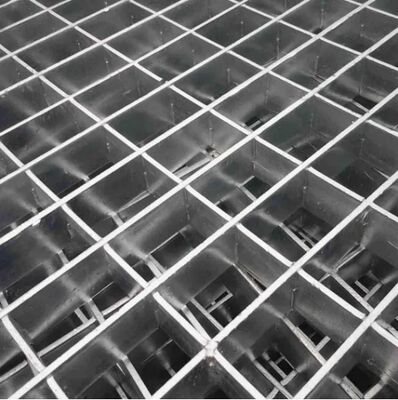

Hot DIP Galvanized Steel Grating used in platform and walkway applications

Product Summary

Hot DIP Galvanized Plain Steel Bar Grating for Floor Hot DIP galvanized steel grating is available in three main styles: Plain Style Steel Grating, Serrated Style Steel Grating, and I-Bar Type Steel Grating. These durable grating solutions are widely used in steel structure platforms, stair treads, ...
