Hot Dip Galvanized Steel Bar Grating with Customizable Sizes and Anti-Rust Properties for Municipal Projects

Brand Name:Gnee
Minimum Order Quantity:2PCS
Supply Ability:300000 Square Meter/Square Meters per Month
Product Details
Highlight:

Hot Dip Galvanized Steel Bar Grating

,

Customizable Sizes Metal Grating

,

Anti-Rust Bar Grating
Product Description
Building Materials MS Galvanized Metal Steel Bar Grating with Fixing Clips
Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars designed for municipal and industrial applications. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars, creating a structure that holds heavy loads with minimal weight.
Applications
Steel grating is widely used for floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.
Technical Specifications
Material Low carbon steel, stainless steel, or custom specifications
Bearing Bar Specifications 20 x 3 to 100 x 10 mm; Standard sizes: 25x5x3, 32x5x3, 38x5x3, 40x5x3, 50x5x3, 50x7x4, 55x7x4, 60x7x4, 65x7x4, 70x7x4, 75x7x4 mm, or customized
Bearing Bar Pitch 12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm, or customized
Cross Bar Pitch 38, 50, 76, 100, 101.6 mm, or customized
Surface Treatment Natural finish, hot dip galvanizing, paint spraying, or custom requirements
Packing Wrapped with film and straps, wooden pallet packing
Product Features
  • Anti-rust protection for long-term durability
  • Exceptional strength and load-bearing capacity
  • Enhanced safety with secure footing
  • Easy installation with fixing clips
  • Minimal weight with maximum structural integrity
Surface Treatment
Steel grating is typically manufactured with hot-dipped galvanized coating for superior corrosion resistance. Zinc coating can also be applied according to specific client requirements. Available as hot-dip galvanized steel grating or stainless steel gratings, these products offer beautiful surface appearance and excellent performance in industrial construction projects.
International Standards Compliance
  • China: YB/T4001.1-2007
  • USA: ANSI/NAAMM (MBG531-88)
  • UK: BS4592-1987
  • Australia: AS1657-1985
Product Gallery

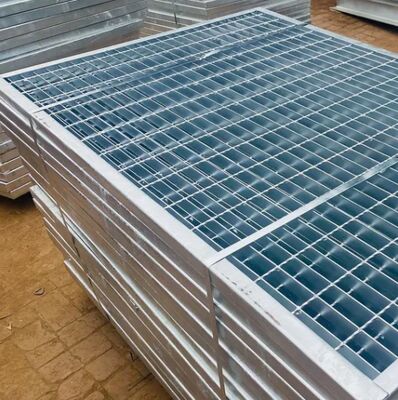

Galvanized steel bar grating installation with fixing clips

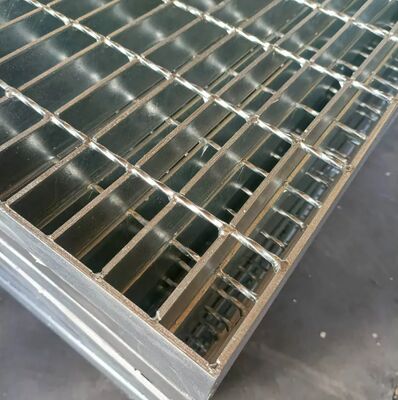

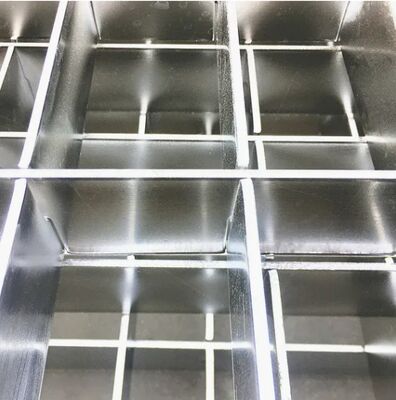

Close-up view of steel grating mesh pattern and construction
Steel grating application in municipal project setting
Product Summary

Building Materials MS Galvanized Metal Steel Bar Grating with Fixing Clips Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars designed for municipal and industrial applications. The bearing bars run in one direction and are spaced by rigid attachment to ...
