Hot Dipped Galvanized Steel Bar Grating with Serrated Surface and 30x3 Bearing Bar for Heavy Duty Applications

Brand Name:Gnee
Minimum Order Quantity:2PCS
Supply Ability:300000 Square Meter/Square Meters per Month
Product Details
Highlight:

Hot Dipped Galvanized Steel Bar Grating

,

Serrated Steel Bar Grating

,

30x3 Bearing Bar Metal Grating
Product Description
Factory Sale Hot Dipped Galvanized Steel Bar Grating
Stainless steel grating is specialized water treatment equipment that continuously and automatically intercepts and removes various debris from fluids. Widely used in urban sewage treatment, it also serves as front-end screening equipment in wastewater treatment processes for industries including textiles, food processing, papermaking, and leather. This represents one of the most advanced solid-liquid screening solutions available.
Product Specifications
Product Name Stainless steel grating
Bearing Bar (Depth x Thickness) 30×3 / 30×5 / 40×3 / 40×5 / 50×3 / 50×5 mm
Bearing Bar Pitch 20-100mm
Twisted Cross Bar Pitch 50/100 mm/customized
Surface Treatment Untreated (black), Hot-dipped galvanized, customized
Grating Style Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Packing (1) Paperboard: Generally applies to neat steel plate; (2) Steel Pallet: Traditional export packing
Sample Free
Key Features
  • Premium Materials: Hot-dip galvanized surface treatment ensures stable performance and extended service life
  • Secure Welding: Machine pressure welding provides sturdy, durable construction with neat joints and flexible cutting options
  • Reliable Performance: Simple structure with attractive appearance, featuring corrosion and rust resistance for long-lasting durability
Metal Bar Grating Components
Span Total span
Width Panel width
Bearing Bars Load carrying main element
Bearing Bars Spacing Measured from center-to-center of bearing bars in 1/16″ increments. Standard spacing for industrial flooring is 19/16″(1-3/16″) in the center. Other popular spacings are 15/16″, 11/16″, 1/2″, and 7/16″ on center.
Bearing Bars Depth Ranges from 3/4″ to 7″ depending on anticipated loads
Bearing Bars Thickness Ranges from 1/8″ to 1/2″ depending on anticipated loads
Cross Bars Used to secure the position of bearing bars
Cross Bar Spacing Measured from center-to-center of cross bars in 1″ increments. Standard spacing is 4″ or 2″ on center.
Product Gallery

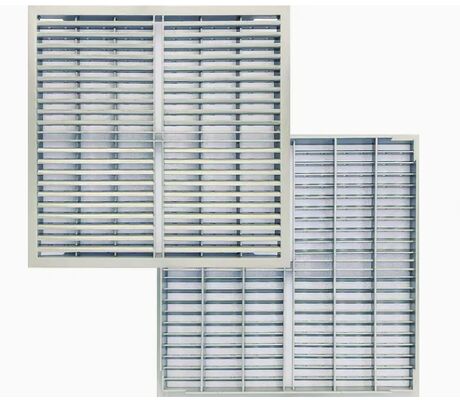

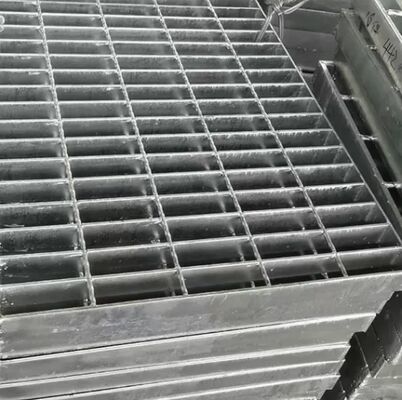

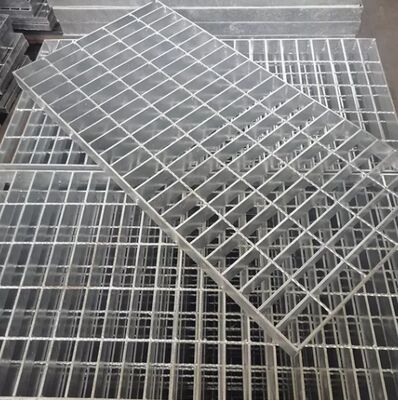

Hot dipped galvanized steel bar grating close-up view showing serrated surface texture Steel grating installation example in industrial setting Steel bar grating structural details and cross-section view
Product Summary

Factory Sale Hot Dipped Galvanized Steel Bar Grating Stainless steel grating is specialized water treatment equipment that continuously and automatically intercepts and removes various debris from fluids. Widely used in urban sewage treatment, it also serves as front-end screening equipment in ...
