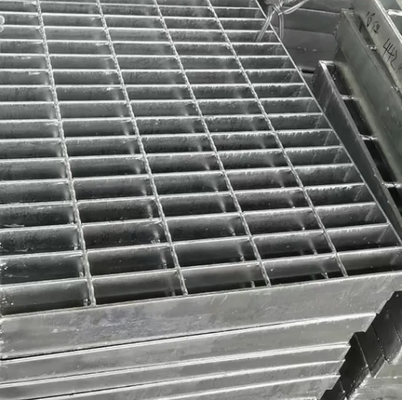

Load Bearing and Slip Resistant Steel Bar Grating with Customizable Sizes for Pedestrian and Light Vehicle Traffic

Brand Name:Gnee

Minimum Order Quantity:2PCS

Supply Ability:300000 Square Meter/Square Meters per Month

Product Details

Highlight:

Load Bearing Steel Bar Grating

Slip Resistant Welded Steel Bar Grating

Customizable Sizes Bar Gratings

Product Description

China Leading Manufacturer of Steel Bar Grating Drainage Grating

Steel Bar Grating, also known as Grating, Bar Gratings or Welded Steel Bar Grating, is an extremely strong and durable solution for all load bearing applications. It is primarily used for pedestrian and light vehicle traffic areas. Available in various bearing bar spacing and thicknesses to meet different application and load requirements, with options for smooth top or serrated surfaces for enhanced slip resistance.

Ordering Information

When placing your order, please provide the following specifications:

Material type
Specification code of steel bar grating
Cross bar type and size
Thickness of checkered steel plates, or all parameters of steel mesh panels (expanded steel mesh, perforated steel mesh, steel wire mesh panels)
Overall size
Surface treatment
Order quantity
Other technical details (if applicable)
All commercial details

Steel Bar Grating Specifications

Vertical Bar Spacing	Horizontal Bar Spacing	Specification of Supporting Flat Steel (Width × Thickness)
		20 × 3	25 × 3	32 × 3	40 × 3	20 × 5	25 × 5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50	-	G253/60/50	G323/60/50	G403/60/50	G205/60/50	G255/60/50

Vertical Bar Spacing	Horizontal Bar Spacing	Specification of Supporting Flat Steel (Width × Thickness)
		32 × 5	40 × 5	45 × 5	50 × 5	55 × 5	60 × 5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Steel Bar Grating product illustration showing industrial grating structure and installation

Product Summary

China Leading Manufacturer of Steel Bar Grating Drainage Grating Steel Bar Grating, also known as Grating, Bar Gratings or Welded Steel Bar Grating, is an extremely strong and durable solution for all load bearing applications. It is primarily used for pedestrian and light vehicle traffic areas. ...
