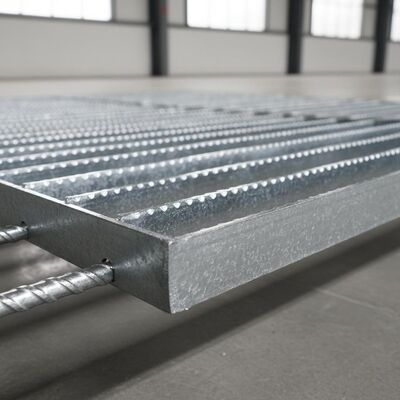

Rust-Proof Galvanized Serrated Steel Grating with 25x5 mm Bearing Bar for Anti-Slip Platforms
Basic Properties
Brand Name:
Gnee
Trading Properties
Minimum Order Quantity:
2PCS
Supply Ability:
300000 Square Meter/Square Meters per Month
Product Summary
Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating Serrated steel grating provides superior non-slip properties for wet environments and areas requiring enhanced safety. The serration process involves carving patterns into the bars to create additional grip surfaces. Available in ...
Product Details
Highlight:
Rust-Proof Steel Grating
,Galvanized Metal Grating
,25x5 mm Bearing Bar Grating
Product Description
Rust-Proof Galvanized Steel Grating Platform Serrated Steel Grating
Serrated steel grating provides superior non-slip properties for wet environments and areas requiring enhanced safety. The serration process involves carving patterns into the bars to create additional grip surfaces. Available in both small and large serration patterns to meet specific application requirements.
Serration Types
Small Serration
The most commonly used serrated form, ideal for industrial walkways, staircase gratings, and heavy-duty ramp applications where reliable traction is essential.
Large Serration
Designed for easy cleaning and maintenance, primarily used in industrial kitchens, canteens, and other locations with high hygiene standards and non-slip requirements.
Technical Specifications
| Item | Description |
|---|---|
| Bearing Bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100x10mm etc. I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc. US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc. |
| Bearing Bar Pitch |
12.5, 15, 20, 25, 30, 32, 35, 38, 40, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. Note: 19-W-4 is most popular (19/16 inch x 4 inch opening = 30x100mm opening) |
| Twisted Cross Bar Pitch |
50, 60, 76, 100, 120mm etc. US standard: 2' & 4' etc. |
| Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| Grating Style | Plain / Smooth, Serrated / teeth, I bar, serrated I bar |

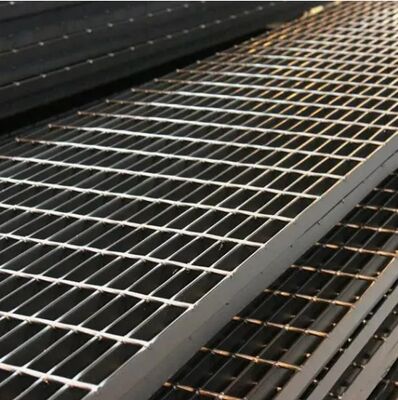

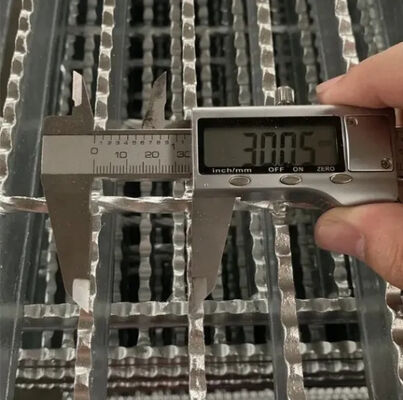

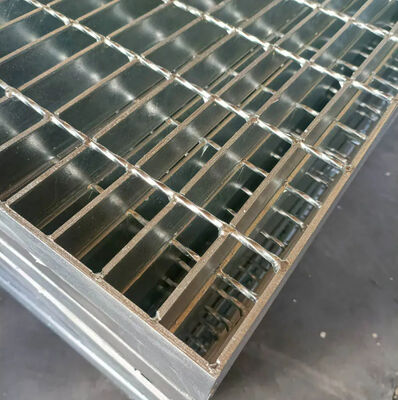

Product Images
