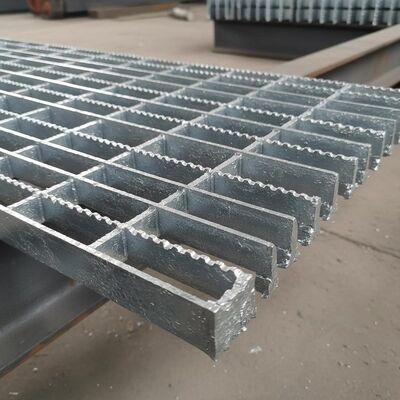

Galvanised Serrated Steel Grating with 25x5 mm Bearing Bar for Anti-Slip Platform Flooring

Large Image : Galvanised Serrated Steel Grating with 25x5 mm Bearing Bar for Anti-Slip Platform Flooring

Product Details:

Brand Name:	Gnee

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Packaging Details:	Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Delivery Time:	Shipped in 20 days after payment
Supply Ability:	300000 Square Meter/Square Meters per Month

Contact Now

Galvanised Serrated Steel Grating with 25x5 mm Bearing Bar for Anti-Slip Platform Flooring

Description

Highlight:

Galvanised Serrated Steel Grating

25x5 mm Bearing Bar Steel Grating

Anti-Slip Metal Grating

Galvanised Serrated Steel Grating for Platform Steel Floor Projects

High-quality galvanised serrated steel grating designed for industrial platform and steel floor applications. Our grating provides superior slip resistance, durability, and load-bearing capacity.

Bearing Bar Specifications

Available in various configurations to meet your project requirements:

Plain & Serrated Type: 25 x 3 mm to 100 x 8 mm
I-Section Type: 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, and more

Bearing Bar Pitch Options

Center-to-center spacing available in: 12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm

Recommended: 30mm, 40mm, 60mm

American Standards: 1" x 3/16", 1 1/4" x 3/16", 1-1/2" x 3/16", 1" x 1/4", 1-1/4" x 1/4", 1 1/2" x 1/4" (19-w-4) and more

Material & Surface Treatment

Materials: Mild Steel (Low Carbon Steel) or Stainless Steel
Surface Treatments: Untreated, Painting, or Hot Dip Galvanizing

International Standards Compliance

China: YB/T4001-1998
USA: ANSI/NAAMM (MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985
Japan: JJS

Detailed Product Specifications

Component	Specifications
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100x10mm and more I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x1/4", 1 1/4"x1/4", 1 1/2"x1/4", 1"x1/8", 1 1/4"x1/8", 1 1/2"x1/8" etc.
Bearing Bar Pitch	12.5, 15, 20, 25, 30, 32, 35, 38, 40, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. Note: 19-W-4 is most popular (19/16 inch x 4 inch opening = 30x100mm opening)
Twisted Cross Bar Pitch	50, 60, 76, 100, 120mm etc. US standard: 2" & 4" etc.
Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
Grating Style	Plain / Smooth, Serrated / teeth, I bar, serrated I bar

Tag:

Contact Person: Mrs. Zhang

Tel: +86 15824687445

Fax: 86-372-5055135

Other Products

30 X 5 Hot Dipped Serrated Steel Grating With Twist Bar Galvanized Steel

Grating Standard: BS 4592-1987, AS 1657-1985, YB/T4001.1-2007

Welding Way: Electrical forged welding, hand welding

HDG standard: BS729, ASTM A123/A123M-97a,ASTM A36/A36M-96

Surface treatment: Hot Dipped Galvanized 450g/sq

Serrated Steel Grid Mesh Flooring , Sliding Resistance Steel Platform Grating

Product name: Serrated Type Galvanized Steel Bar Sliding Resistance Grating Platform

Bearing bar type: Serrated

Grating thickness: 20mm,25mm,30mm,40mm ,60mm etc

Bearing bar thickness: 2,3,5,10mm,etc

Galvanized Serrated Steel Grating For Floor Plate Q235low Cardon Material

Welding Way: Electrical forged welding, hand welding

Cross Bar Pitch: 38mm,50mm,100mm etc

Bearing bar size: 25*3, 30*3,50X5mm

Bearing bar spacing: 30mm,35mm,40mm or customized

40 X 5 Serrated Bar Grating , Metal Building Hot Dipped Galvanised Steel Grate

Bearing bar size: 25x5,32x5,32x3,35x5,40x3,40x5,55x5 and etc

Surface Finishing: Hot dipped galvanized,Painting

Grating Size: 3'x20', 3'x24', 3'x30', 1000x1000MM

Bearing bar spacing: 30mm,35mm,40mm or customized

Galvanized Serrated Steel Grating Anti Slip Welded Steel Silver / Black Color

Color: Silver,Black

Surface treatment: Galvanized,Painting

Cross Bar Pitch: 38mm,50mm,100mm etc

Bearing bar spacing: 30mm,40mm ,60mm etc
