Welded Serrated Plain Bar Carbon Hot DIP Galvanizing Steel Structure Grating

Steel grating is manufactured through manual or machine welding processes, arranging bearing bars and cross bars in precise longitude and latitude patterns at specified intervals. Cross bars are pressed into bearing bars using high-tension resistance welding controlled by molds or computer systems.

Key Advantages

Material efficiency and cost savings
Reduced investment requirements
Simple construction and installation
Exceptional durability and longevity
Modern, fashionable appearance
Anti-fouling properties
Reduced wind resistance
Straightforward design principles
Strong corrosion resistance

Applications

Steel grid board is widely utilized across domestic and international industries, primarily serving as industrial platforms, ladder pedals, handrails, channel flooring, railway bridge side roads, high tower frame platforms, drain covers, well covers, road crossing gates, multi-level parking structures, institutional buildings, schools, factories, playgrounds, and garden villa fencing. Also suitable for residential exterior windows, balcony guardrails, and highway/railway barriers.

Technical Specifications

Material	Low carbon steel, stainless steel, or custom specifications
Bearing Bar Specifications	20 x 3 to 100 x 10 mm; Custom sizes available including 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4 mm
Bearing Bar Pitch	12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm or custom specifications
Cross Bar Pitch	38, 50, 76, 100, 101.6 mm or custom specifications
Surface Treatment	Natural finish, hot dip galvanizing, paint spraying, or custom requirements
Features	Anti-rust, durable, strong, safe, easy installation
Packing	Film wrapped with straps, wooden pallet packaging
Compliance Standards	China: YB/T4001.1-2007 \| USA: ANSI/NAAMM(MBG531-88) \| UK: BS4592-1987 \| Australia: AS1657-1985

Bearing Bar Specifications Table

No.	Bearing Bar Pitch (mm)	Standard Panel Width (Bearing Bar Thickness 5mm)	Bearing Bar Number (PC)	Remark
1	12.5	1005	81	Pitch between the two sides are smaller than normal bearing bar pitch
2	15	1010	68
3	20	1010	51
4	22	995	46
5	23.85	1007	43
6	25	1005	41
7	30	995	34
8	30.16	1000	34
9	30.3	1005	34
10	32.5	1013	32
11	34.3	1000	30
12	35	1020	30
13	35.3	1029	30
14	40	1005	26
15	41	1030	26
16	41.4	999	25
17	50	1005	21
18	60	965	17
19	62	997	17

Product Images

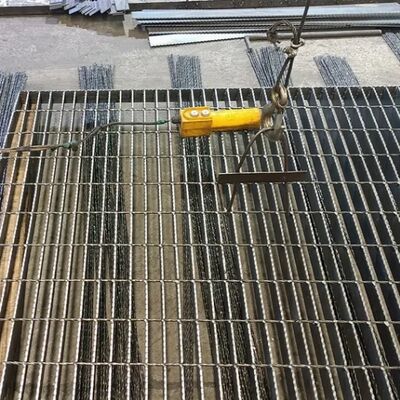

Welded serrated plain bar carbon hot dip galvanizing steel structure grating installation example

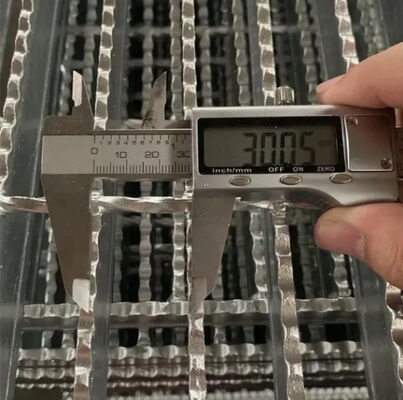

Close-up view of welded steel grating showing serrated pattern and galvanized finish
